Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate

Name: Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate
Brand: Xingweihan
Price: 20 USD

China Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate wholesale

max. welding thickness : 6+6mm

power (kw) : 1000W

rated capacity : 100-250KVA

voltage : 380 V, 220 V, 440V

Brand Name : Xingweihan

Place of Origin : Sichuan, China

condition : New

dimensions : 1200*1700*2200mm

rated duty cycle : 50%

usage : Brake Base Plate Spot Welding Machine

warranty : 1 Year

weight (kg) : 1000

Product Name : Carbon Steel Car Brake Base Plate Projection Welding Machine Price

Application : Industrial Automatic

Function : Projection Welding Machine Stainless Steel

Machine type : Pneumatic

Keyword : Automatic Projection Welding Machine

Feature : Projection Spot Welding

Welding material : Alloy Metal Aluminum Stainless Steel

Certification : CE, RoHS, ISO

After Warranty Service : Video technical support, Online support and Spare parts

After-sales Service Provided : Free spare parts, Field installation, commissioning and training

MOQ : 1 set

Price : $20,000-25,000 / set

Contact Now

Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate

Product Description

Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate

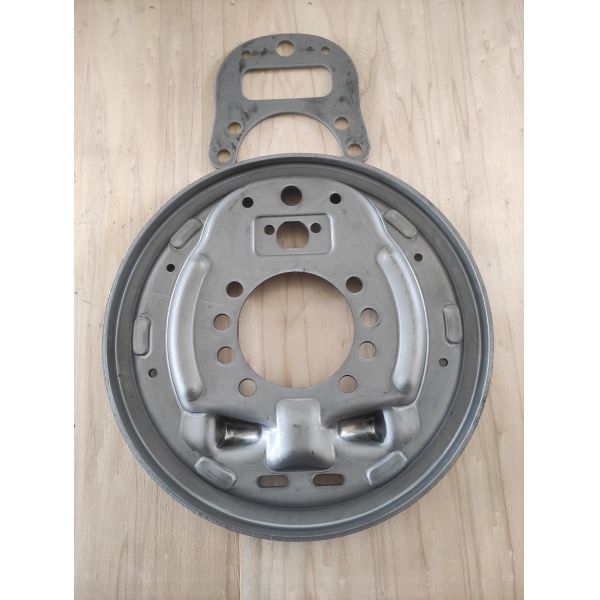

The automatic projection welder for carbon steel automotive brake bottom plate is a high-precision automated welding equipment specially developed for automotive brake systems. It adopts medium frequency inverter (MFDC) or capacitor energy storage welding technology, integrates servo drive system and PLC intelligent control, and achieves efficient spot welding and convex welding processing of carbon steel brake bottom plate (Q235/SPHC, 1-6mm). Through digital parameter control, ensure that the welding strength meets the standards of automotive safety components, suitable for automated connection of brake base plates and fasteners (nuts/bolts).

Technical Parameters

Items \ Models	DN(B)-100	DN(B)-160	DN(B)-200	DN(B)-250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current （KA）	30	35	40	45
Duty cycle（%）	50	50	50	50
Max. force（N）	6000	6000	10000	15000
Electrode length（ MM）	450	450	450	500
Working stroke（ MM）	80	80	80	80
Cooling consumption（L/min）	20	20	20	20
Max. welding capacity（MM）	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

Main Features

1. Use servo motors or high-precision pneumatic pressurization systems to ensure stable welding pressure and avoid virtual welding and deformation.

2. Supports both spot welding and projection welding modes to meet different welding needs (such as flat spot welding or projection welding).

3. Welding current, time, pressure and other parameters can be accurately adjusted to ensure consistent welding strength.

4. Integrate automatic positioning, welding, and detection functions to reduce manual intervention and improve production efficiency.

5. Optional robot or rotary multi station system for continuous welding, suitable for large-scale production.

6. Strong compatibility and stability are suitable for 1-6mm carbon steel plates, which can be welded to workpieces with coatings or slight corrosion.

7. Adopting medium frequency direct current (MFDC) or capacitor energy storage power supply, with less welding spatter, low electrode loss, and longer lifespan.

8. Equipped with a water cooling system to ensure long-term continuous operation without generating heat.

9. PLC+touch screen control, supports multiple sets of welding parameter storage, facilitates quick production changes.

10. Optional real-time monitoring system (such as current monitoring, pressure feedback) to ensure that the quality of each solder joint meets the standard.

11. Low noise, low smoke and dust, improve the working environment in the workshop.

General Strctures

Detail Images

Dual Cabinet Configuration

In addition to the conventional welding controller, the welding system is also equipped with an electrical control cabinet, which enables safer, more efficient, and intelligent operation, especially suitable for industrial scale large-scale or high-precision welding tasks.

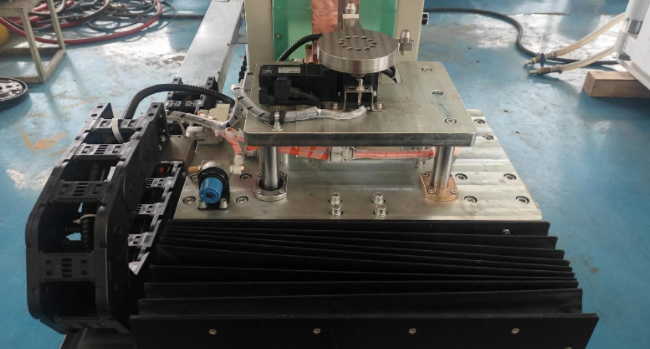

Fully Automatic Welding

High compatibility, with 3 types of workpieces corresponding to 3 types of fixtures. Simply replace the positioning component to achieve model change. Fully automatic welding, automatically moving the point position to complete the welding.

Gas Storage Tanks

The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.

Waterway Components

All waterway components have undergone surface treatment to prevent rusting, and any drainage from the waterway is independently discharged into the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

Scene images

Our factory can customize according to your requirments. More details, please contact!
